Stage interpretation LED rental screen solution

The LED display rental performance market demand, the full launch of the LED die-casting aluminum box, is not only a simple upgrade of the traditional die-casting aluminum box, the structure, performance has been comprehensively optimized and updated. The LED rental display is a compact rental display made of die-cast aluminum box, with high box splicing accuracy, and extremely convenient disassembly and maintenance.

1. Functional effects

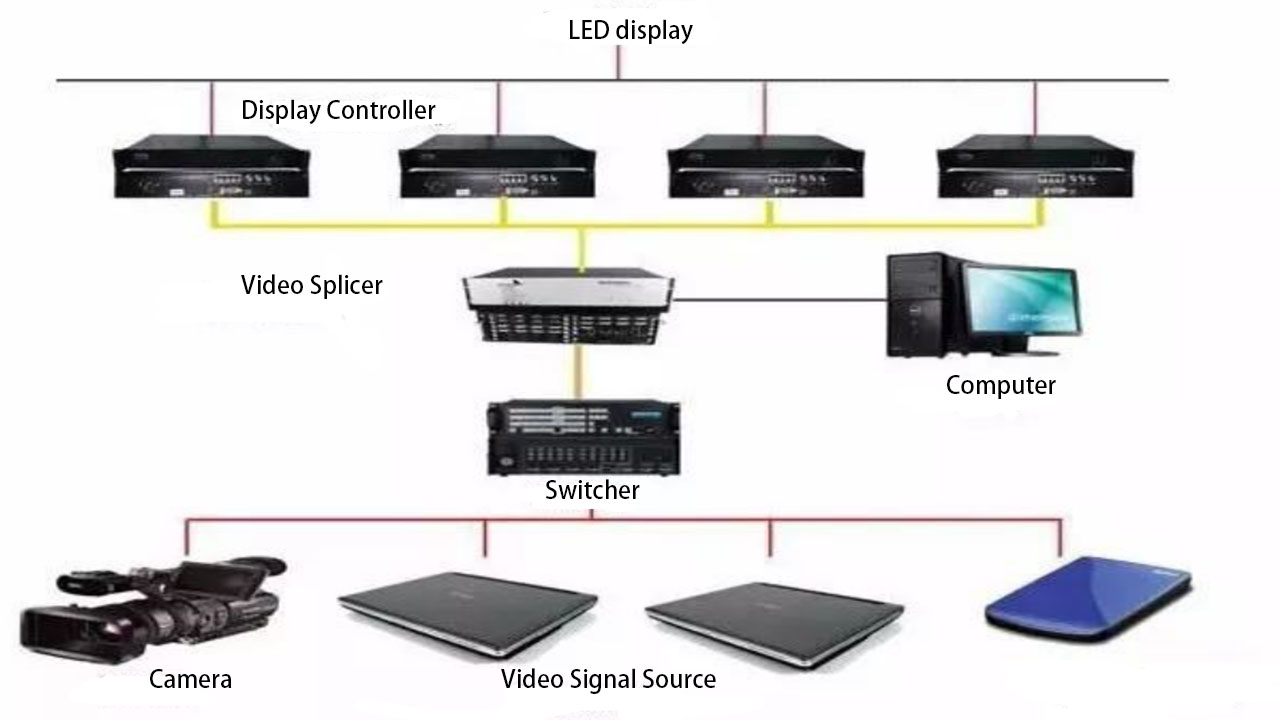

As a custom die-cast aluminum box design, the LED rental display is light, thin and quick to install as its most important features. The box is thin and light, can be quickly installed, dismantled and transported, and is suitable for large-area rental and fixed installation applications. And the synchronous control system is used to process, which can accept various video input signals such as DVI, VGA, HDMI, S-video, composite, YUV, etc., and can play video, graphics and other programs at will, and play various information in a real-time, synchronous and clear information transmission mode. The colors are realistic and adaptable.

2. Program features

The lightweight, slim, and quick-install design enables you to complete the installation and removal of the display in a short time.

Support any direction of the signal line to meet the different cabinet arrangement and placement to create different effects of the picture.

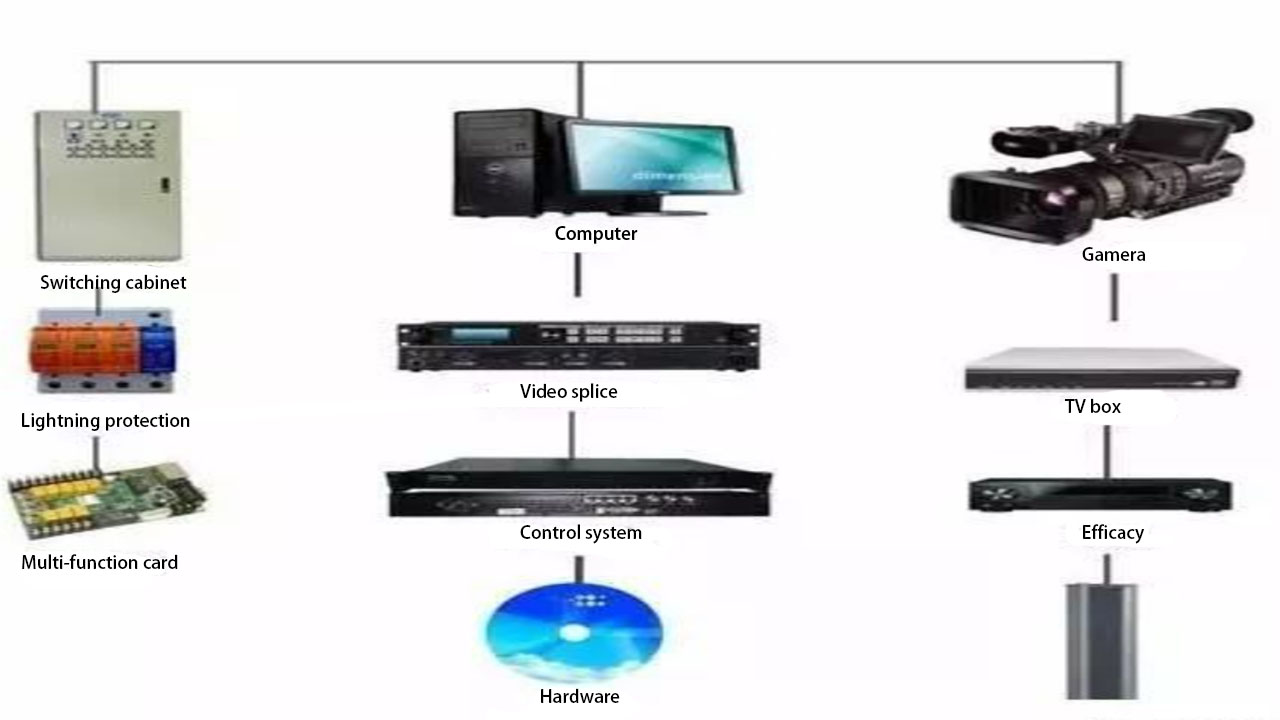

 Equipped with a professional video processor, it supports AV, DP, VGA, DVI, YPBPR, HDMI, SDI and other signals.

 It supports 256 levels of brightness adjustment and white balance custom adjustment, so that different batches of displays can be mixed.

Signal processing: RTF series products adopt signal folding technology, and the unit module does not need to be cascaded, which greatly improves the display performance of the product. Using the signal folding technology, the unit module does not need to be cascaded, which greatly improves the display performance of the product.

Mask: Mask with patented technology, the mask adopts the assembly method of snap fastening at the rear, which can facilitate the front maintenance of the LED light, the front of the mask cannot see the fastening screws, the screen surface is integral, and there is no bright spot caused by screw leakage when the screen is lit.

Module: Large module is adopted, with only 4 modules per box, which reduces internal connection and improves product stability. There is no need to open the cabinet, and the display module can be directly removed and assembled from the rear of the cabinet. There is no need to open the cabinet, and the display module can be directly removed and assembled from the rear of the cabinet.  Back cover: Remove the 4 screws and remove the back cover to maintain and replace the power supply and receiving card.

 Heat dissipation plate: The aluminum bottom plate is used instead of the traditional plastic bottom shell, which improves the heat dissipation performance of the product while ensuring the flatness.

 IC and driver: high refresh frequency, high grayscale high refresh frequency, high grayscale 16384 level grayscale products using high-end constant current driver chip with built-in PWM. In the case of a single receiver card with load, the display refresh frequency can be as low as 960 HZ, up to 4800 HZ. Gray level up to 16bit, smooth picture, can easily meet the stage performance, broadcasting and other high-end application requirements. The DC power cord is made of American standard wire, and the power input is made of surface socket, which is not easy to loosen, and the line loss is minimal in the process of power transmission, and the input voltage is stable.

High gray scale and high refresh rate design, gray level 14 bit, refresh rate > 960Hz.

Excellent heat dissipation design and heat dissipation performance, no need for external fans, air conditioners, etc., low noise; The box is light in weight and requires low installation costs; The cabinet has low power consumption and saves operating costs.

It has a good waterproof effect and has an IP65 protection level, which is suitable for outdoor rental use.

It is equipped with various specifications of flight boxes, which is convenient for the storage and transportation of the box, and plays a good role in protecting the LED display.

3. Solution

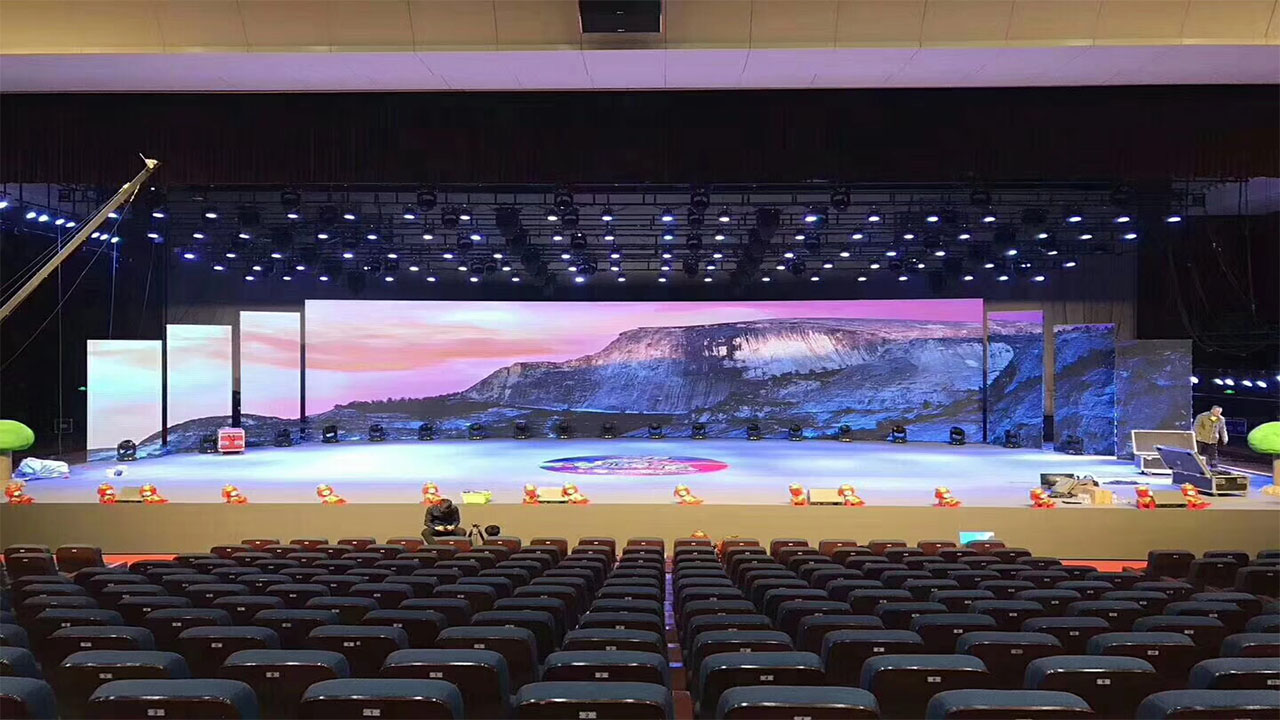

Rental screens are widely used in stage rental, singing and dancing parties, various press conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, interpretation halls, disco bars, nightclubs, high-end entertainment discotheques, etc.
