Pixel Pitch Explained: Do You Really Need P1.2 for Your Conference Room?

The Truth About Pixel Pitch: How to Choose the Right LED Wall for Your Office.

When upgrading a conference room or boardroom, the trend is clear: projectors are out, and direct-view LED walls are in. As you browse specifications, you’ll see one term repeated constantly: Pixel Pitch (P1.2, P1.5, P1.8, etc.).

Many IT managers and facility directors fall into a common trap: assuming that smaller is always better. While a P0.9 or P1.2 screen is undeniably stunning, is it actually necessary for your specific space? Or are you paying a premium for resolution the human eye can't even perceive?

In this guide, we’ll break down how to choose the perfect pixel pitch for your corporate environment, balancing visual performance with budget efficiency.

1. What is Pixel Pitch? (A Quick Refresher)

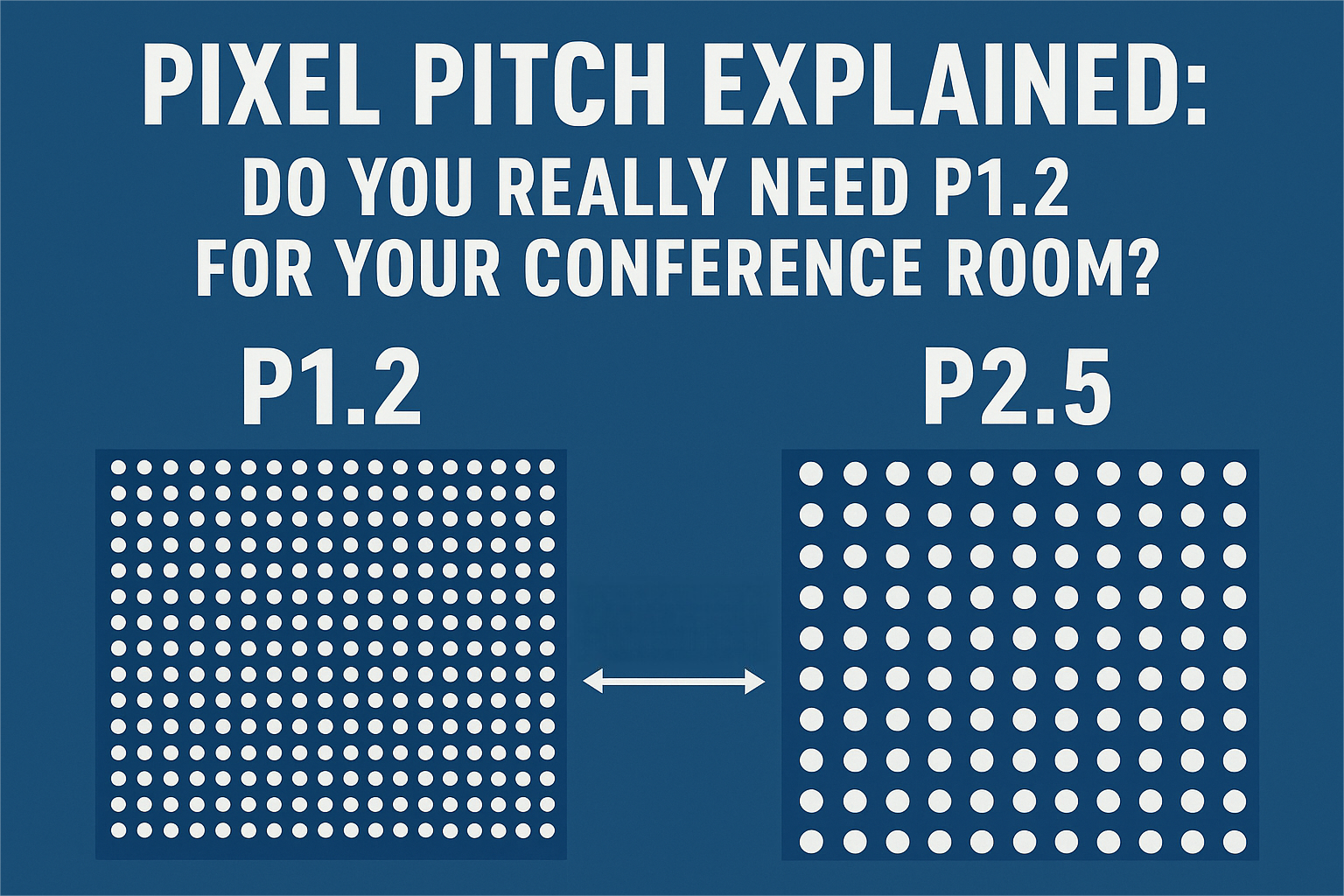

Simply put, pixel pitch is the distance (in millimeters) from the center of one LED pixel to the center of the next.

P1.2 = 1.2mm between pixels (Higher density, higher resolution).

P2.5 = 2.5mm between pixels (Lower density, lower resolution).

The general rule is: The smaller the pitch, the closer you can stand to the screen without seeing the individual dots (graininess).

2. The "Golden Rule" of Viewing Distance

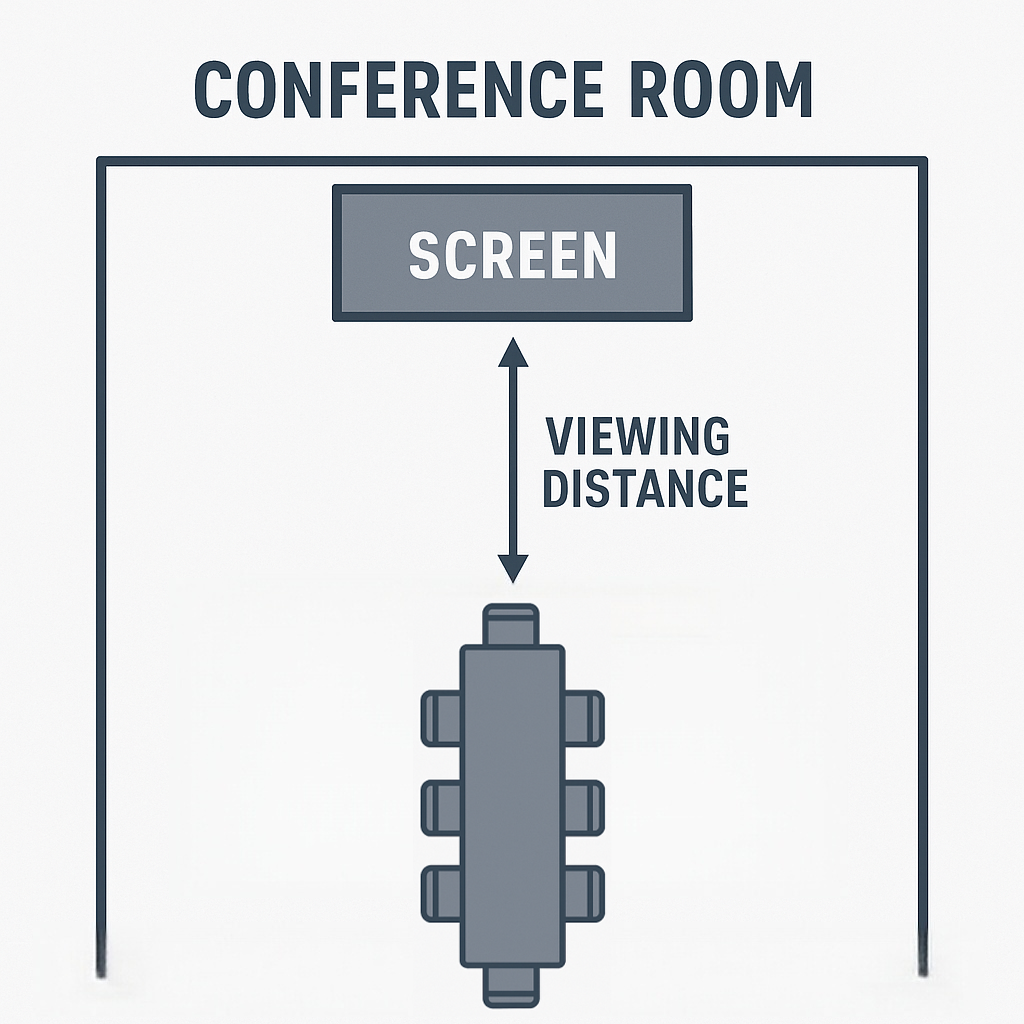

Before you commit to a P1.2 display, you need to measure your room. The most critical factor in choosing pixel pitch is the Minimum Viewing Distance—the distance between the screen and the closest person sitting in the room.

Here is a standard industry formula to calculate the optimal pitch:

Visual Acuity Distance (Visual Limit) = Pixel Pitch (mm) x 3000 (Approximate distance where the image looks completely smooth)

Or, a simpler rule of thumb for average corporate use:

P1.2: Best for viewing from 1.2m - 2.0m (4 - 6.5 ft)

P1.5: Best for viewing from 1.5m - 3.0m (5 - 10 ft)

P1.8 / P2.0: Best for viewing from 2.0m - 4.0m+ (6.5 - 13 ft)

3. The Reality Check: Do You Need P1.2?

Scenario A: The Huddle Room / Executive Office

Room Size: Small.

Closest Viewer: 1 to 2 meters away.

Verdict: Yes, P1.2 (or even P0.9) is justified. At this close range, viewers will notice pixelation on a P1.8 screen. If your executives are reviewing detailed Excel spreadsheets, architectural CAD drawings, or high-res medical imaging, the high density of P1.2 ensures crisp, readable text without eye strain.

Scenario B: The Standard Boardroom / Training Hall

Room Size: Medium to Large.

Closest Viewer: 3 to 4 meters away (First row usually sits back to see the whole screen).

Verdict: P1.2 might be overkill. If the closest person is 4 meters away, the human eye physically cannot distinguish the difference between a P1.2 and a P1.5 or P1.8 screen. In this case, choosing P1.2 is paying for resolution that no one can see.

4. The Budget Factor: Diminishing Returns

Moving from P1.5 to P1.2 can often increase project hardware costs by 30% to 50%.

If your viewing distance allows for a P1.5 or P1.8, those saved funds can be better allocated towards:

Better Content Control Systems: (e.g., Novastar processors).

Higher Refresh Rates: (3840Hz or 7680Hz) for flicker-free video calls and photography.

Extended Warranty & Spares: Ensuring long-term reliability.

Conclusion: The Right Fit for YOUR Space

At MIGHTYLING, we don't just sell screens; we provide solutions. While we are proud of our cutting-edge P0.9 and P1.2 Fine Pitch series, we believe the "best" screen is the one that fits your environment and budget perfectly.
